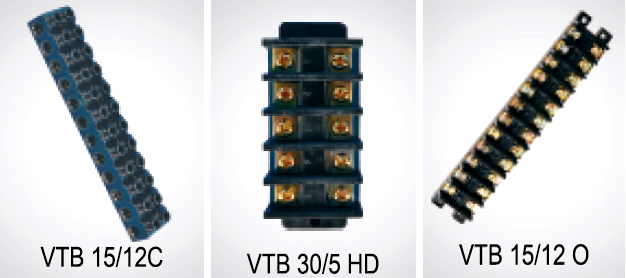

Terminal Strips

VEECO TERMINAL BLOCKS are designed for simple and economical grouping of any number of ways.

For each assembly, only one end plate is required at the end. Terminal Block moulded in bakelite and neutral connection is also available.

RANGE

Presently available in 30amp, 60amp, 100amp

CONSTRUCTION

VEECO TERMINAL BLOCKS are made of

When cutting off the channel, it is advisable to leave it longer to accommodate possible future additions. Should it be necessary to remove a block for any reason, loosen one end clamp, slide blocks apart until the interlock is free, pres the block towards springs and lift out.

TECHNIAL DATA
Electrical ratings : 30 A at 500 V AC
60 A at 500 V AC
100 A at 500 V AC
Body and End Plate : Moulded Bakelite
Connecting link : Brass to IS 410
Screws : MS Passivated
Channel : Steel Passivated
End Clamp and Screw : Steel Passivated
Test Voltage : 2000 V between adjacent terminals and
2500 V between terminals and channels.
