H.R.C. Fuse Base

VEECO FUSE BASE are designed for easy panel mounting in switchboards for application in low voltage switchgear.

They are used at places were continuity of supply is necessary for switching to an alternative source of supply from main supply& vice-versa.

FUSE BASE are available in different rating of amp.

RANGE

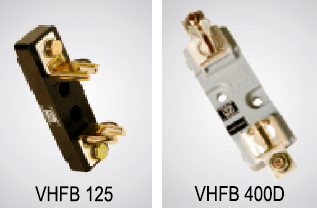

Presently available in 125 amp, 250 amp, 400 amp, 630 amp.

CONSTRUCTION

VEECO FUSE BASE are made of

• Main body are molded from high grade flame retardant, non-hygroscopic black Phenolic compound. Also available in D.M.C. Molding for better electrical insulation and high impact strength.
• Simple construction with minimum no. of parts for simplicity and reliable operation.
• All rating are fitted with high pressure metal backing stirrups resulting in low temperature rise.
• suitable for HRC Blade fuse link
• Lyre shaped silver plated copper contacts for minimum contact resistance and low temperature rise.
• Fitted with high quality spring/circlips for proper contact pressure.
• All the current non-ferrous parts are silver plated to ensure better conductivity & to prevent oxidation.

TECHNIAL DATA

Rate operational voltage (Ue) :	500 V.A.C.
Utilization category :	AC-23A
No. of Poles :	1 Poles
Rated breaking capacity :	80 KA
Temp with stand Range (ambient) :	-5 ° C TO 50 ° C
ISI MARK :	AS PER IS 13703 (PART 2/SEC 1)
Rated frequency :	50 hz
Used Size of fuse links :	00, 01, 02, 03
